Sparkfun AI Workshop: Muscle AI install trouble

Majotito · June 30, 2021, 1:03pm

Hi-- I’m running into trouble getting Arduino IDE to get to the Blink example. I got the board in using. I got to the Blink example, and got this error:
======================== = =
Arduino: 1.8.13 (Mac OS X), Board: “SparkFun MicroMod nRF52840 Processor Board”

Warning: Board attiny:variants:gemma doesn’t define a ‘build.board’ preference. Auto-set to: VARIANTS_GEMMA
Warning: Board attiny:variants:trinket3 doesn’t define a ‘build.board’ preference. Auto-set to: VARIANTS_TRINKET3
Warning: Board attiny:variants:trinket5 doesn’t define a ‘build.board’ preference. Auto-set to: VARIANTS_TRINKET5
fork/exec /Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4/bin/arm-none-eabi-g++: no such file or directory
Error compiling for board SparkFun MicroMod nRF52840 Processor Board.
================ = =

I'm also having trouble with the CLI, but I stepped away from that when I found this [thread](https://forum.edgeimpulse.com/t/sparkfun-muscle-ai-workshop-troubleshooting/2216) and followed what I could to get the IDE started.

aurel · June 30, 2021, 1:29pm

Hi @Majotito,

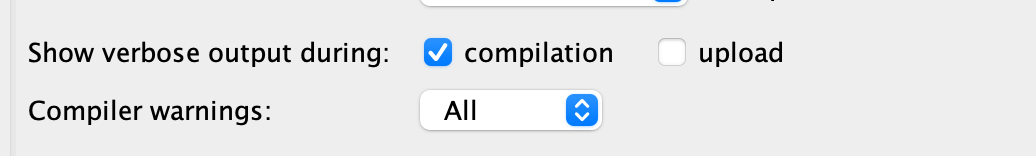

Could you enable verbose output during compilation and provide the full logs? (Arduino -> Preferences)

Thanks,
Aurelien

Majotito · June 30, 2021, 1:40pm

Hi @aurel. See below.
======================= =
Arduino: 1.8.13 (Mac OS X), Board: “SparkFun MicroMod nRF52840 Processor Board”

/Applications/Arduino.app/Contents/Java/arduino-builder -dump-prefs -logger=machine -hardware /Applications/Arduino.app/Contents/Java/hardware -hardware /Users/MTBOOK/Library/Arduino15/packages -hardware /Users/MTBOOK/Documents/Arduino/hardware -tools /Applications/Arduino.app/Contents/Java/tools-builder -tools /Applications/Arduino.app/Contents/Java/hardware/tools/avr -tools /Users/MTBOOK/Library/Arduino15/packages -built-in-libraries /Applications/Arduino.app/Contents/Java/libraries -libraries /Users/MTBOOK/Documents/Arduino/libraries -fqbn=arduino:mbed:sfnrf52840pb -vid-pid=2341_805A -ide-version=10813 -build-path /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_build_392137 -warnings=none -build-cache /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_cache_406188 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.arm-none-eabi-gcc.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4 -prefs=runtime.tools.arm-none-eabi-gcc-7-2017q4.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4 -prefs=runtime.tools.openocd.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/openocd/0.10.0-arduino13 -prefs=runtime.tools.openocd-0.10.0-arduino13.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/openocd/0.10.0-arduino13 -prefs=runtime.tools.bossac.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/bossac/1.9.1-arduino2 -prefs=runtime.tools.bossac-1.9.1-arduino2.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/bossac/1.9.1-arduino2 -prefs=runtime.tools.dfu-util.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/dfu-util/0.9.0-arduino2 -prefs=runtime.tools.dfu-util-0.9.0-arduino2.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/dfu-util/0.9.0-arduino2 -verbose /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_modified_sketch_495532/Blink.ino
/Applications/Arduino.app/Contents/Java/arduino-builder -compile -logger=machine -hardware /Applications/Arduino.app/Contents/Java/hardware -hardware /Users/MTBOOK/Library/Arduino15/packages -hardware /Users/MTBOOK/Documents/Arduino/hardware -tools /Applications/Arduino.app/Contents/Java/tools-builder -tools /Applications/Arduino.app/Contents/Java/hardware/tools/avr -tools /Users/MTBOOK/Library/Arduino15/packages -built-in-libraries /Applications/Arduino.app/Contents/Java/libraries -libraries /Users/MTBOOK/Documents/Arduino/libraries -fqbn=arduino:mbed:sfnrf52840pb -vid-pid=2341_805A -ide-version=10813 -build-path /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_build_392137 -warnings=none -build-cache /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_cache_406188 -prefs=build.warn_data_percentage=75 -prefs=runtime.tools.arm-none-eabi-gcc.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4 -prefs=runtime.tools.arm-none-eabi-gcc-7-2017q4.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4 -prefs=runtime.tools.openocd.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/openocd/0.10.0-arduino13 -prefs=runtime.tools.openocd-0.10.0-arduino13.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/openocd/0.10.0-arduino13 -prefs=runtime.tools.bossac.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/bossac/1.9.1-arduino2 -prefs=runtime.tools.bossac-1.9.1-arduino2.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/bossac/1.9.1-arduino2 -prefs=runtime.tools.dfu-util.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/dfu-util/0.9.0-arduino2 -prefs=runtime.tools.dfu-util-0.9.0-arduino2.path=/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/dfu-util/0.9.0-arduino2 -verbose /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_modified_sketch_495532/Blink.ino
Using board ‘sfnrf52840pb’ from platform in folder: /Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1
Using core ‘arduino’ from platform in folder: /Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1
Warning: Board attiny:variants:trinket3 doesn’t define a ‘build.board’ preference. Auto-set to: VARIANTS_TRINKET3
Warning: Board attiny:variants:trinket5 doesn’t define a ‘build.board’ preference. Auto-set to: VARIANTS_TRINKET5
Warning: Board attiny:variants:gemma doesn’t define a ‘build.board’ preference. Auto-set to: VARIANTS_GEMMA
Detecting libraries used…
/Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4/bin/arm-none-eabi-g++ -c -w -g -Os -nostdlib @/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/variants/SF_MM_nRF52840_PB/defines.txt @/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/variants/SF_MM_nRF52840_PB/cxxflags.txt -DARDUINO_ARCH_NRF52840 -mcpu=cortex-m4 -mfloat-abi=softfp -mfpu=fpv4-sp-d16 -w -x c++ -E -CC -DARDUINO=10813 -DARDUINO_ARDUINO_NANO33BLE -DARDUINO_ARCH_MBED -DARDUINO_LIBRARY_DISCOVERY_PHASE=0 -I/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/cores/arduino -I/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/variants/SF_MM_nRF52840_PB -I/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/cores/arduino/api/deprecated -iprefix/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/cores/arduino @/Users/MTBOOK/Library/Arduino15/packages/arduino/hardware/mbed/1.3.1/variants/SF_MM_nRF52840_PB/includes.txt /var/folders/yp/5ks2gmm54bnd542z7xfjfbjw0000gn/T/arduino_build_392137/sketch/Blink.ino.cpp -o /dev/null -DARDUINO_LIB_DISCOVERY_PHASE
fork/exec /Users/MTBOOK/Library/Arduino15/packages/arduino/tools/arm-none-eabi-gcc/7-2017q4/bin/arm-none-eabi-g++: no such file or directory
Error compiling for board SparkFun MicroMod nRF52840 Processor Board.
=========================== = =

aurel · June 30, 2021, 2:02pm

Looks like something went wrong when installing the mbed package in Boards Manager.
Can you try also installing this package and restart the IDE:

If it still doesn’t work you can follow the procedure here: https://forum.arduino.cc/t/exec-bin-arm-none-eabi-g-file-does-not-exist/635591/4

Aurelien

Majotito · June 30, 2021, 2:29pm

@aurel - Adding that board didn’t work. I’m trying the procedure you linked to. It’s taking a while to reload & install the tools. . .

Majotito · June 30, 2021, 2:41pm

@aurel - OK, so do I need to go through this procedure again?

aurel · June 30, 2021, 2:43pm

I’m afraid so if you’ve removed the complete folder

Majotito · June 30, 2021, 2:47pm

What programmer should I use?

Majotito · June 30, 2021, 2:49pm

OK, got it. Now onto the CLI. . .

Majotito · June 30, 2021, 2:54pm

@aurel - I did the command
sudo npm install -g edge-impulse-cli --force
. . and I got a lot of returned messages but ultimately :
========== = =
npm ERR! AttributeError: ‘NoneType’ object has no attribute ‘groupdict’
npm ERR! gyp ERR! configure error
npm ERR! gyp ERR! stack Error: gyp failed with exit code: 1
=================== == =
I tried dropping in the log, but this wont take that file. Should I just quote it in here?

aurel · June 30, 2021, 2:57pm

Sure you can quote the text here.
Otherwise it’s best avoiding sudo to install node packages. There are more details in our documentation to troubleshoot CLI setup: https://docs.edgeimpulse.com/docs/cli-installation

Aurelien

Majotito · June 30, 2021, 3:05pm

OK. Here it is. Well, it would not let me post whole thing; here’s the log after the errors start::
===================== = =

1532 error code 1
1533 error path /usr/local/lib/node_modules/edge-impulse-cli/node_modules/@serialport/bindings
1534 error command failed
1535 error command sh -c prebuild-install --tag-prefix @serialport/bindings@ || node-gyp rebuild
1536 error gyp info it worked if it ends with ok
1536 error gyp info using node-gyp@7.1.2
1536 error gyp info using node@16.4.0 | darwin | x64
1536 error gyp info find Python using Python version 3.9.5 found at “/Library/Frameworks/Python.framework/Versions/3.9/bin/python3”
1536 error (node:74840) [DEP0150] DeprecationWarning: Setting process.config is deprecated. In the future the property will be read-only.
1536 error (Use node --trace-deprecation ... to show where the warning was created)
1536 error gyp info spawn /Library/Frameworks/Python.framework/Versions/3.9/bin/python3
1536 error gyp info spawn args [
1536 error gyp info spawn args ‘/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/gyp_main.py’,
1536 error gyp info spawn args ‘binding.gyp’,
1536 error gyp info spawn args ‘-f’,
1536 error gyp info spawn args ‘make’,
1536 error gyp info spawn args ‘-I’,
1536 error gyp info spawn args ‘/usr/local/lib/node_modules/edge-impulse-cli/node_modules/@serialport/bindings/build/config.gypi’,
1536 error gyp info spawn args ‘-I’,
1536 error gyp info spawn args ‘/usr/local/lib/node_modules/npm/node_modules/node-gyp/addon.gypi’,
1536 error gyp info spawn args ‘-I’,
1536 error gyp info spawn args ‘/Users/MTBOOK/Library/Caches/node-gyp/16.4.0/include/node/common.gypi’,
1536 error gyp info spawn args ‘-Dlibrary=shared_library’,
1536 error gyp info spawn args ‘-Dvisibility=default’,
1536 error gyp info spawn args ‘-Dnode_root_dir=/Users/MTBOOK/Library/Caches/node-gyp/16.4.0’,
1536 error gyp info spawn args ‘-Dnode_gyp_dir=/usr/local/lib/node_modules/npm/node_modules/node-gyp’,
1536 error gyp info spawn args ‘-Dnode_lib_file=/Users/MTBOOK/Library/Caches/node-gyp/16.4.0/<(target_arch)/node.lib’,
1536 error gyp info spawn args ‘-Dmodule_root_dir=/usr/local/lib/node_modules/edge-impulse-cli/node_modules/@serialport/bindings’,
1536 error gyp info spawn args ‘-Dnode_engine=v8’,
1536 error gyp info spawn args ‘–depth=.’,
1536 error gyp info spawn args ‘–no-parallel’,
1536 error gyp info spawn args ‘–generator-output’,
1536 error gyp info spawn args ‘build’,
1536 error gyp info spawn args ‘-Goutput_dir=.’
1536 error gyp info spawn args ]
1536 error No receipt for ‘com.apple.pkg.CLTools_Executables’ found at ‘/’.
1536 error
1536 error No receipt for ‘com.apple.pkg.DeveloperToolsCLILeo’ found at ‘/’.
1536 error
1536 error No receipt for ‘com.apple.pkg.DeveloperToolsCLI’ found at ‘/’.
1536 error
1536 error Traceback (most recent call last):
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 1500, in XcodeVersion
1536 error version_list = GetStdoutQuiet([“xcodebuild”, “-version”]).splitlines()
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 1563, in GetStdoutQuiet
1536 error raise GypError(“Error %d running %s” % (job.returncode, cmdlist[0]))
1536 error gyp.common.GypError: Error 1 running xcodebuild
1536 error
1536 error During handling of the above exception, another exception occurred:
1536 error
1536 error Traceback (most recent call last):
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/gyp_main.py”, line 51, in
1536 error sys.exit(gyp.script_main())
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/init.py”, line 670, in script_main
1536 error return main(sys.argv[1:])
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/init.py”, line 662, in main
1536 error return gyp_main(args)
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/init.py”, line 647, in gyp_main
1536 error generator.GenerateOutput(flat_list, targets, data, params)
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/generator/make.py”, line 2451, in GenerateOutput
1536 error writer.Write(
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/generator/make.py”, line 831, in Write
1536 error self.WriteSources(
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/generator/make.py”, line 1302, in WriteSources
1536 error cflags = self.xcode_settings.GetCflags(
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 661, in GetCflags
1536 error archs = self.GetActiveArchs(self.configname)
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 515, in GetActiveArchs
1536 error xcode_archs_default = GetXcodeArchsDefault()
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 122, in GetXcodeArchsDefault
1536 error xcode_version, _ = XcodeVersion()
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 1511, in XcodeVersion
1536 error version = CLTVersion() # macOS Catalina returns 11.0.0.0.1.1567737322
1536 error File “/usr/local/lib/node_modules/npm/node_modules/node-gyp/gyp/pylib/gyp/xcode_emulation.py”, line 1549, in CLTVersion
1536 error return re.search(regex, output).groupdict()[“version”]
1536 error AttributeError: ‘NoneType’ object has no attribute ‘groupdict’
1536 error gyp ERR! configure error
1536 error gyp ERR! stack Error: gyp failed with exit code: 1
1536 error gyp ERR! stack at ChildProcess.onCpExit (/usr/local/lib/node_modules/npm/node_modules/node-gyp/lib/configure.js:351:16)
1536 error gyp ERR! stack at ChildProcess.emit (node:events:394:28)
1536 error gyp ERR! stack at Process.ChildProcess._handle.onexit (node:internal/child_process:290:12)
1536 error gyp ERR! System Darwin 18.5.0
1536 error gyp ERR! command “/usr/local/bin/node” “/usr/local/lib/node_modules/npm/node_modules/node-gyp/bin/node-gyp.js” “rebuild”
1536 error gyp ERR! cwd /usr/local/lib/node_modules/edge-impulse-cli/node_modules/@serialport/bindings
1536 error gyp ERR! node -v v16.4.0
1536 error gyp ERR! node-gyp -v v7.1.2
1536 error gyp ERR! not ok
1537 verbose exit 1

======== =
